Polylaminate Capsules

Polylaminate Capsules

In order to provide a vintage look, reminescent of the classic tin or lead capsules, Battistella has combined years of experience with the research towards new materialstechnology.

The results are the Futura Plus heavy polilaminated aluminum capsules and the new Poly-Tin capsules.

Screenshot 2025-10-07 alle 12.07.06 PM

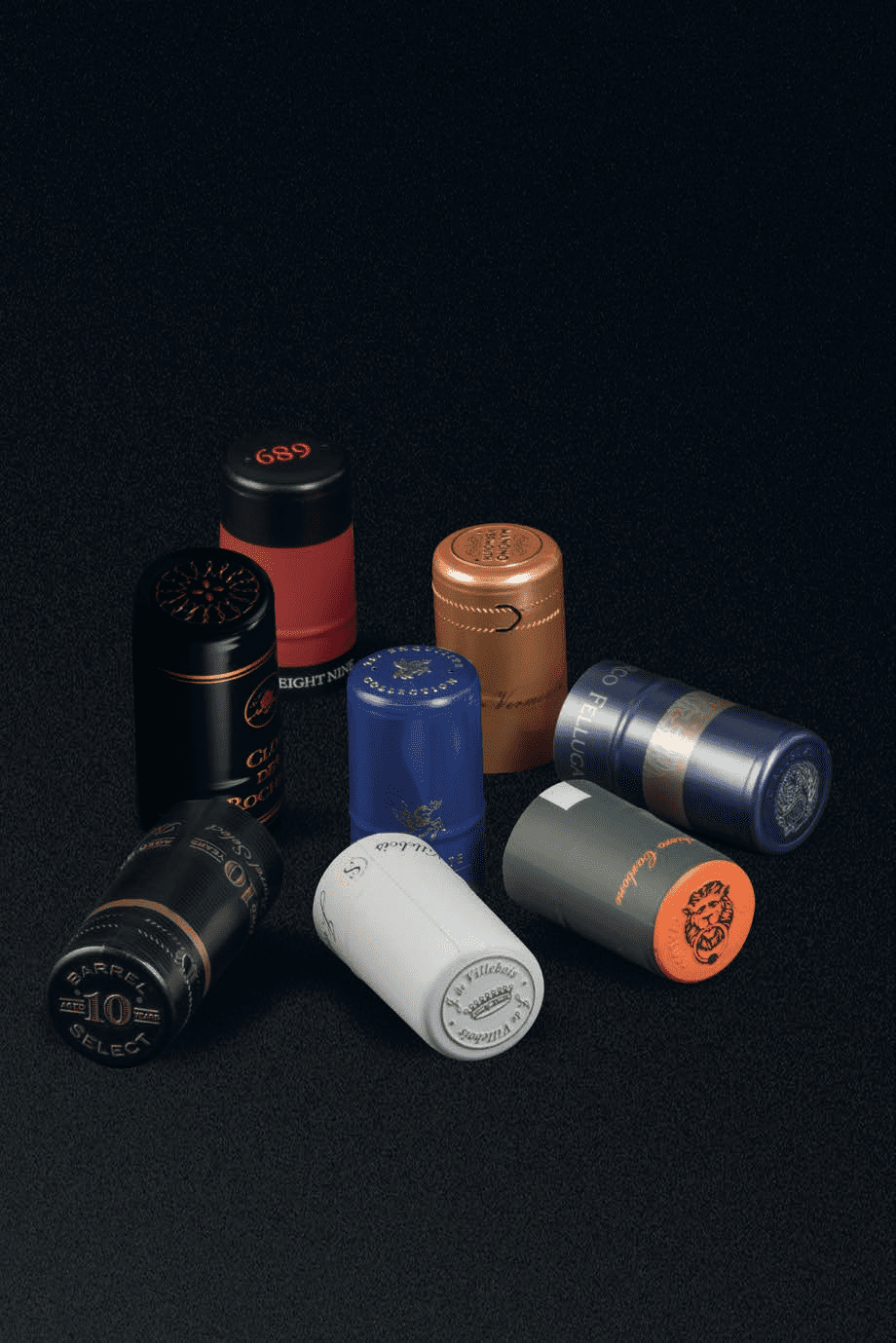

A collection of variously colored and shaped bottle caps on a black surface.
Logo featuring 'Futura Plus and Poly-Tin' with a stylized circular design.

FUTURA PLUS AND POLY-TIN

THE EVOLUTION OF A NEW LOOK

A PERSONAL AND DISTINCTIVE ALTERNATIVE

MATERIALS

  • FUTURA PLUS

    Heavy polylaminated aluminum capsules.

  • POLY-TIN

    The perfect alternative to the classic tin capsule through innovative technologies and materials. Enables better spin-down and material elasticity.

  • FUTURA PLUS

    DISK
    aluminum 70µ

    SKIRT
    polylaminated aluminum 120µ

  • POLY-TIN

    DISK
    aluminum 70µ

    SKIRT
    polylaminated aluminum 130µ

FUTURA PLUS

DIMENSIONS

  • Standard Diameter: from 28,9 to 32 mm
  • Non-Standard Diameter: up to 33 mm
  • Heights: from 43 to 75 mm

COLORS

  • Custom Colors
    to match color sample
    or Pantone chip

TOP DISKS

  • Rotogravure Printing
  • Embossing and Ink Printing
  • Hot Stamp Printing
  • Blind Embossing
  • Breather Holes

PRINT

  • Rotogravure Printing
  • Hot Stamp Printing
    up to 2 colors

PACKAGING

  • Box Capsule Count: between 2.800 and 3.740 pieces

(Based on the capsule's dimensions)

  • Pallet: 40" X 48" skid, 88" tall 30 boxes per pallet

(6 boxes per layer)

  • Customized packaging upon request

POLY-TIN

DIMENSIONS

  • Standard Diameter: from 28,9 to 32 mm
  • Heights: from 43 to 75 mm

COLORS

  • Custom Colors
    to match color sample
    or Pantone chip

TOP DISKS

  • Rotogravure Printing
  • Embossing and Ink Printing
  • Hot Stamp Printing
  • Blind Embossing
  • Breather Holes

PRINT

  • Rotogravure Printing
  • Hot Stamp Printing
    up to 2 colors

PACKAGING

  • Box Capsule Count: between 2.800 and 4.090 pieces(depending on capsule size and taper)
  • Pallet: 40" X 48" skid, 88" tall 30 boxes per pallet(5 boxes per layer)
  • Customized packaging upon request

FUTURA PLUS AND POLY-TIN PRINTING PROCESSES

SKIRT

Close-up of a blue bottle with elegant cursive text.
CUSTOMIZATIONS

Rotogravure Printing

Entire Background

Provides intensity and vibrant colors with gradient effects not obtainable with hot stamp printing. Allows for reproduction of any color. Ideal for larger runs. Also available with UV ink. Can be used in combination with hot stamp printing with embossing.

Rotogravure printing could be a single color background or with up to 4 more printing colors in addition to the background color

Blue barrel labeled 'Exquisite Collection' with a golden lion emblem.
CUSTOMIZATIONS

Hot Stamp Printing

A system of transferring hot foil colors designs by heat and pressure.

Up to 4 hotprints. Gives a refined look to the capsule.

Hot stamp can be applied over rotogravure ink printing

A black bottle with intricate white and gold geometric patterns.
PERSONALIZZAZIONI

Offset Printing

Fully customizable prints that have high resolution and intricate patterns.

FUTURA PLUS AND POLYITIN PRINTING PROCESSES

TOP DISKS

Round emblem with abstract red and blue shapes on a white background.
CUSTOMIZATIONS

Rotogravure Printing

Allows you to replicate up to 4 colors.
Can be combined with hot stamp printing.

A black circular badge with a white ship wheel design.
CUSTOMIZATIONS

Embossed Ink Printing

Printing technique over embossed surface used primarily for ancient bronze/silver look.

A circular Mancino Vermouth logo with elegant golden text on a dark red background.
CUSTOMIZATIONS

Hot Stamp Printing

Delivers a fine detail print up to 1 printing color.

A maroon cricket ball with a golden crown and logo.
CUSTOMIZATIONS

Embossed Hot Stamp Printing

Hot stamp printing with embossing.
It can be done over rotogravure print.

Black round button with embossed text and symbols.
CUSTOMIZATIONS

Blind Embossing

Embossing without color.

FUTURA PLUS AND POLY-TIN CUSTOMIZATIONS

OPENING SYSTEMS AND BREATHER HOLES

Diagram of a condom with a highlighted area inside.
CUSTOMIZATIONS

5mm Tear Tab

Double perforation
with 5mm tear tab.

Close-up of a wine bottle neck with a dark blue capsule.
Two simple black and white smiley faces stacked vertically.
CUSTOMIZATIONS

Breather Holes

Double or quadruple top disk holes.
Fully customizable hole placement, distance and number.

Various colored wine bottle caps arranged in a group.

CUSTOM PRINTING

Colorful wine corks arranged in a row against a black background.

FUTURA PLUS POLYITIN

Assorted champagne bottle foils in various colors and designs.
